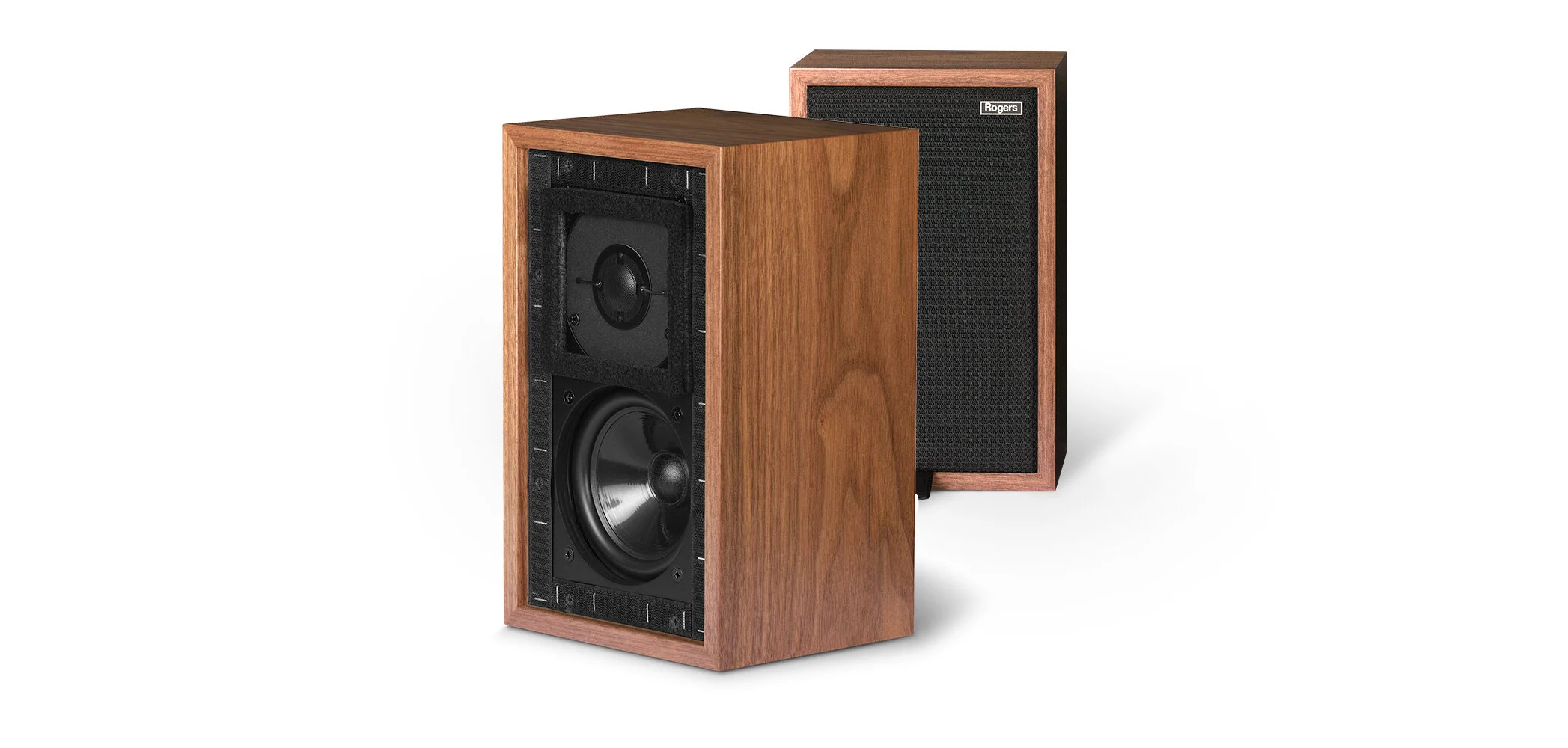

LS3/5a Classic

15 Ohm speaker | a true classic

Rogers International UK Ltd are pleased to announce the release of the Reborn LS3/5a Classic 15 Ohm speaker. Having previously manufactured over 50,000 pairs of LS3/5a’s, Rogers are now once again manufacturing this landmark speaker in the UK.



If the cabinet isn’t right, the music won’t be either

· Critically damped 12mm Russian birch ply enclosure
· Hardwood beech fillets
· Balanced real wood veneers
· 12mm birch ply baffle
· Tygan grille
· Walnut or Rosewood as standard
· Special finishes to order





an audiophile legend in its own right

Listed as one of the 12 most significant speakers of all time (the absolute sound September 18th 2010) states that the Rogers LS3/5a offers a: “startling realistic vocal reproduction and a remarkably expansive and box-less sound picture”. The LS3/5a has stood the test of time as few other speakers have. Ultimately the Rogers LS3/5a has transcended it’s BBC monitor status to become an audiophile legend in its own right.











The smallest of details make all the difference

· Single wire, 4mm Multi-Contact sockets, Silver plated for the best connection
· Choice of beautiful real-wood veneers finished by master-craftsman, rosewood, walnut and olive as standard
· Custom finishes* and RAL colour options* available at extra cost and to special order*.
*Please speak to your nearest Rogers specialist or contact Rogers to discuss your requirements.





Measurements only take you part of the way, because you cannot measure emotion

· Single layer one ounce copper track fiberglass PCB
· M6 laminated transformer cored crossover inductors
· M6 laminated transformer cored auto transformer for tweeter level matching
· High voltage Metalised capacitors
· All components hand soldered with silver solder


Sometimes what you cannot see,
is more important than what you can

· Tweeter Mylar dome tweeter with kraft nomex voice coil former. Hand finished and pair matched in UK
· Doped Bextrene cone bass unit hand finished and pair matched in UK




Specifications

· System type: Two way infinite baffle
· Frequency response: 80Hz-20KHz +/-3dB
· Nominal Impedance: 15 Ohms
· Bass/midrange: 110mm Bextrene cone
· Tweeter: 19mm Mylar dome
· Crossover frequency: 3KHz
· Sensitivity: 82.5dB/W/M
· Dimensions: 305 x 190 x 165mm (HxWxD)
· Weight: 4.9Kgs
· Recommended amplifier range 30-80 Watts
